Automatic Piping Welding Workstation

Home » Products » Pipe Fabrication Workstation » Automatic Piping Welding Workstation (Type-C)
Automatic Piping Welding Workstation

Model: PAWWS-24Cb/PAWWS-24Cc/PAWWS-24Cd

Features

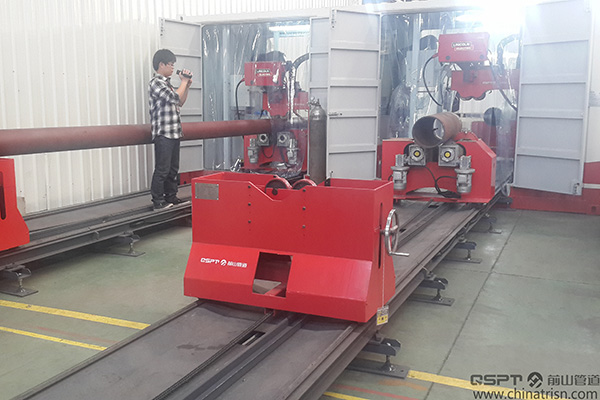

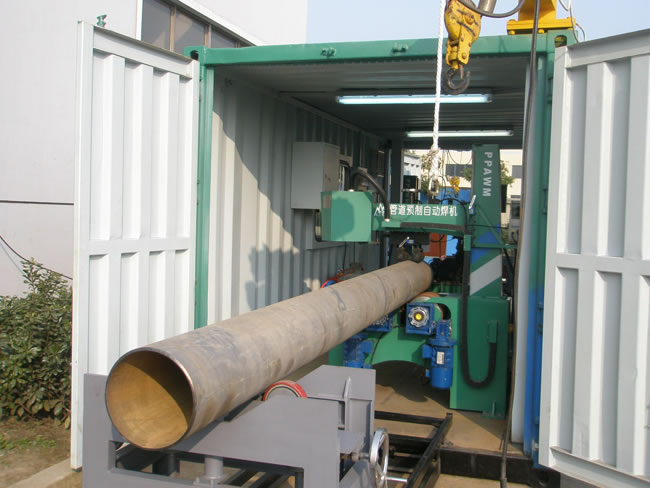

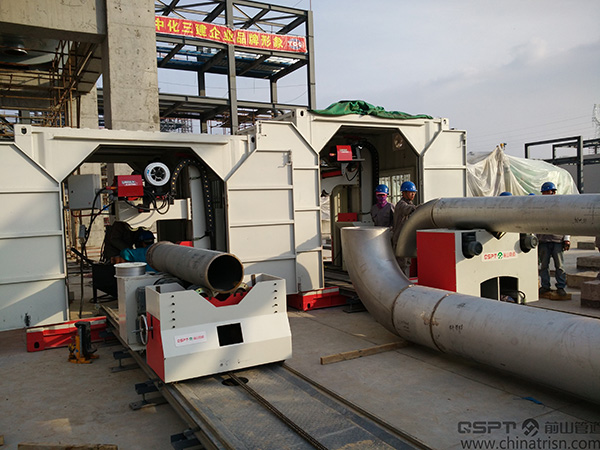

1. The basic configuration of the automatic piping welding workstation consists of one piece of 6m container made with special retrofit, one set of piping prefabrication automatic welding machine+one piping cantilever automatic welding machine; or one set of piping prefabrication automatic welding machine+one set of automatic portable piping welding machine ; or one set of piping prefabrication automatic welding machine+one set of automatic piping welding machine, and two sets of rail and trolley conveying system, 2 sets of cantilever cranes (option) and two sets of fcaw welding source or two sets of fcaw welding source or one set of fcaw welding source +one set of saw welding source.
2. The automatic piping welding workstation has a production efficiency of 450~650 O.D-Inch per day (DN200 SCH40).
3. It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).

Applications
The automatic piping welding workstation is used for projects with a majority of standard wall thickness pipes and few heavy wall thickness pipes.

Technical Parameters of the Automatic Piping Welding Workstation (Type C)
Pipe Diameter Applicable: DN50~600 (φ60~610) mm
Pipe Wall Thickness Applicable: 3-20/3-20/3-60MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welding Line Applicable: Various of butt welding lines for pipe spools such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
Welding Procedure: FCAW/FCAW/FCAW+SAW (Option or as per request)
Welding Power: NBC-500/NBC-500/NBC-500+MZ-630 (Option or as per request)

As a professional automatic piping welding workstation manufacturer based in China, we not only provide pipe fabrication workstation, but also offer pipe fabrication production line, pipe fabrication welding equipment, pipe fabrication fitting-up equipment, and pipe fabrication beveling equipment.
