Numerical Control Pipe Cutting Band Saw Machine

Home » Products » Pipe Fabrication Cutting Equipment » Numerical Control Pipe Cutting Band Saw Machine

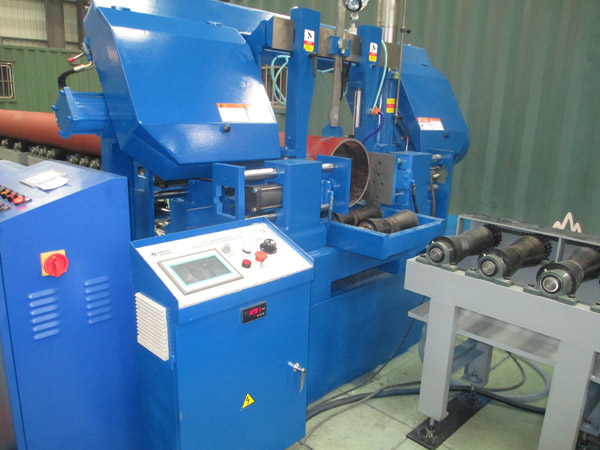

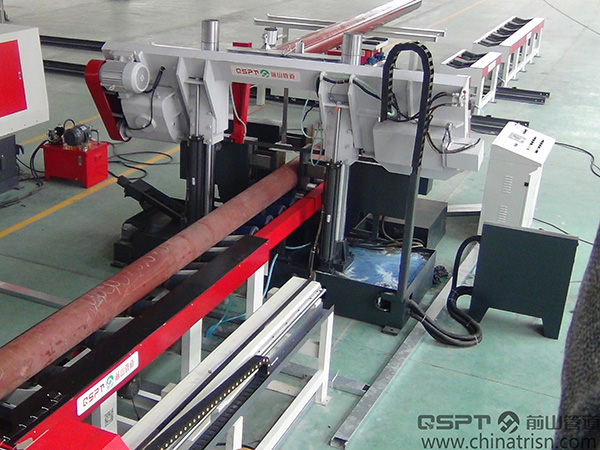

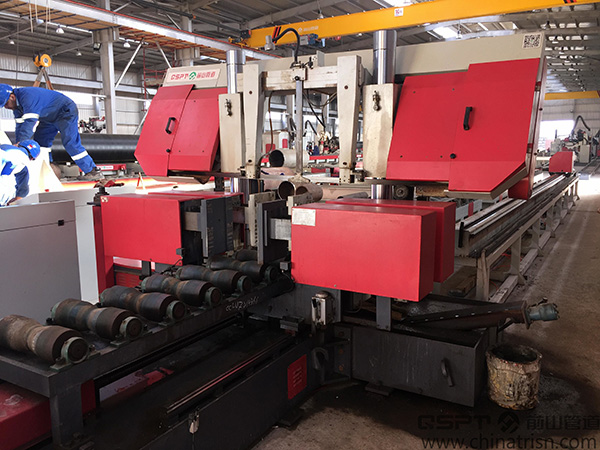

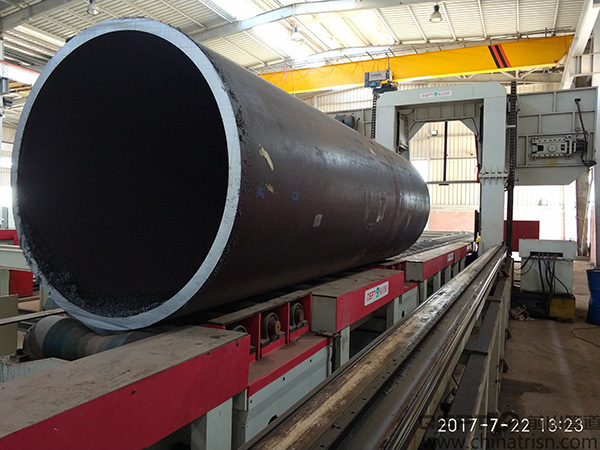

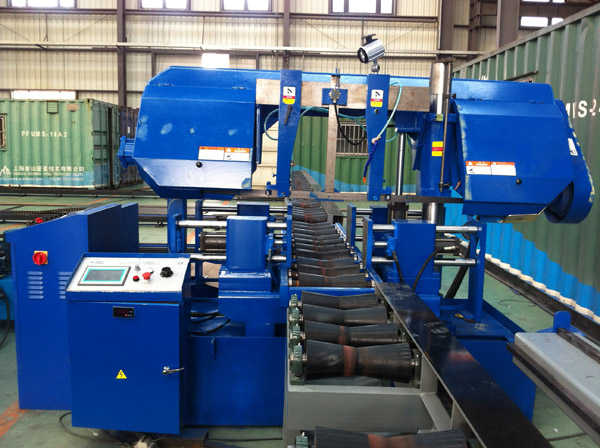

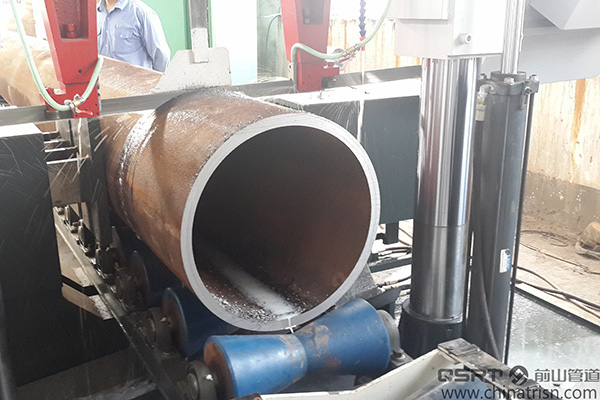

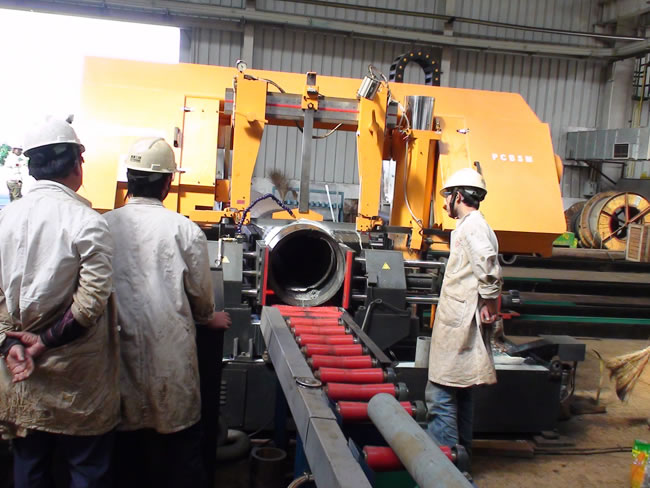

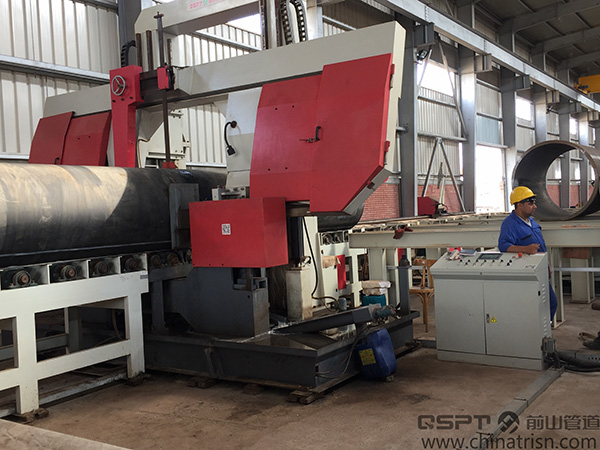

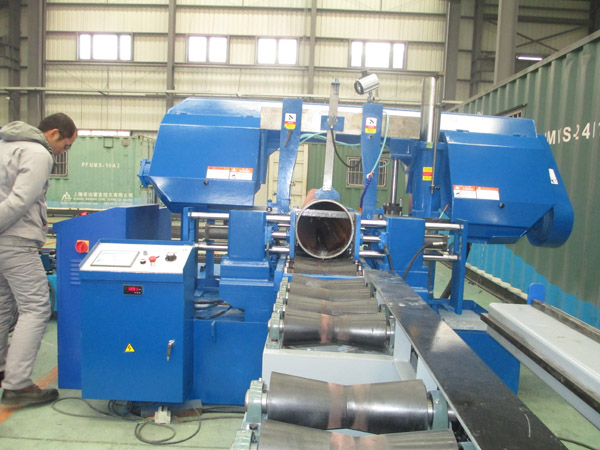

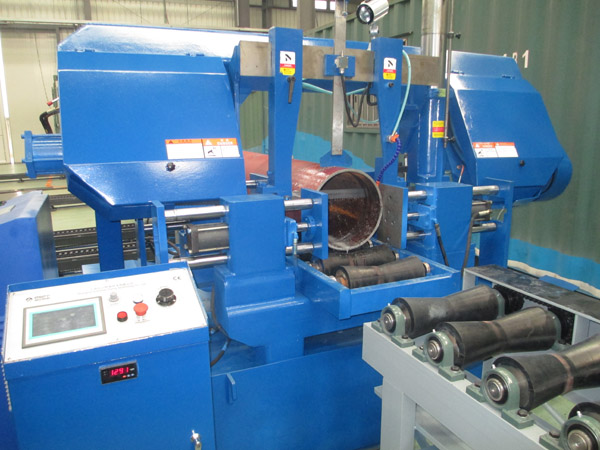

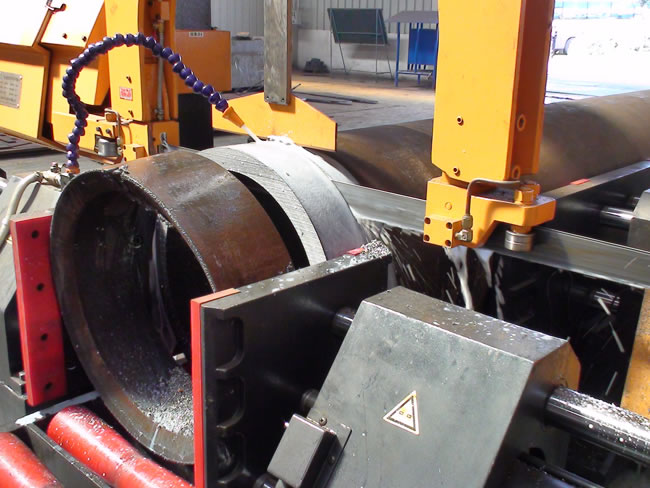

Numerical Control Pipe Cutting Band Saw Machine

Model: PCBSM-24Ba; PCBSM-32Ba

Features
1. The numerical control pipe cutting band saw machine offers good on-line performance (designed as per the on-line equipment of the production line).
2. It offers a cutting efficiency of ≤2Min /pipeline bevel (DN200 SCH80).
3. The numerical control pipe cutting band saw machine has good opening quality.

Applications
The numerical control pipe cutting band saw machine is used for projects with a majority of heavy wall thickness and standard wall thickness pipes.

Technical Parameters of the Numerical Control Pipe Cutting Band Saw Machine
Structure: Horizontal, with one main column+one auxiliary column
Pipe Diameter Applicable: DN50-600(φ60-610); DN150-800(φ159-813)mm
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Feeding Speed: Stepless speed adjustment
Clamping Mode: Both sides centering clamping automatically by hydraulic cylinder
Band Saw Tension: Tensioning and loosen automatically by hydraulic
Cooling System: Built in coolant pump
Speed of the Band Saw: 17-85m/min speed control by frequency variation
Size of the Band Saw: 7400*54*1.6; 8050*67*1.6mm
Dimension of Machine: 3750*2300*210mm; 3925*1660*2320mm
Weight of Machine: 5000KGS;7500KGS (±5%)
Length-Measuring System: A mechanical length-measuring system can be provided to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system
Measuring Length: 1m/once
Control System: PLC Controlling
Conveying System: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary

Qianshan is a numerical control pipe cutting band saw machine manufacturer based in China. Our company also offers pipe plasma beveling and cutting machine, pipe automatic welding machine, piping fabrication fast fitting-up machine, pipe fabrication production line, and much more.
