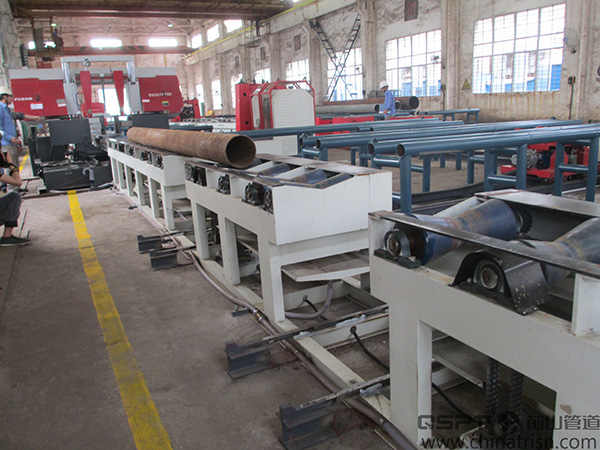

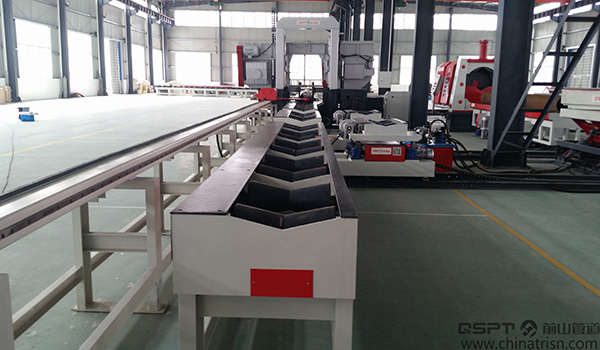

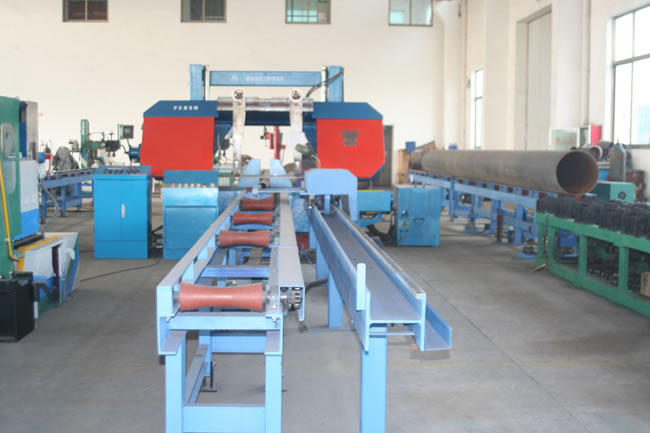

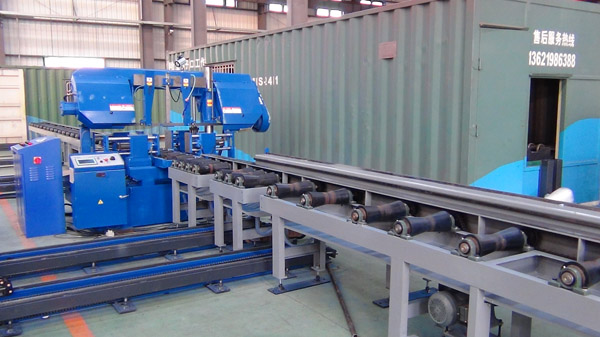

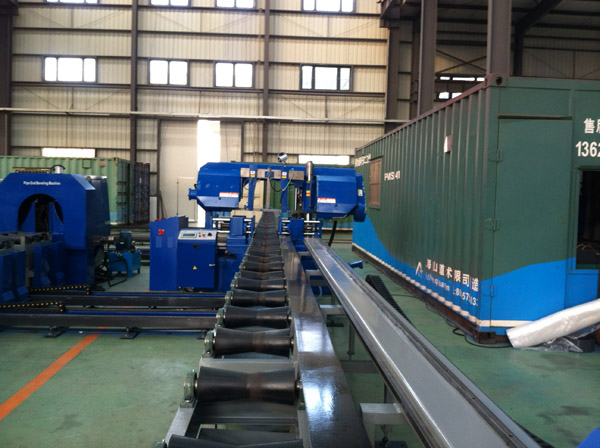

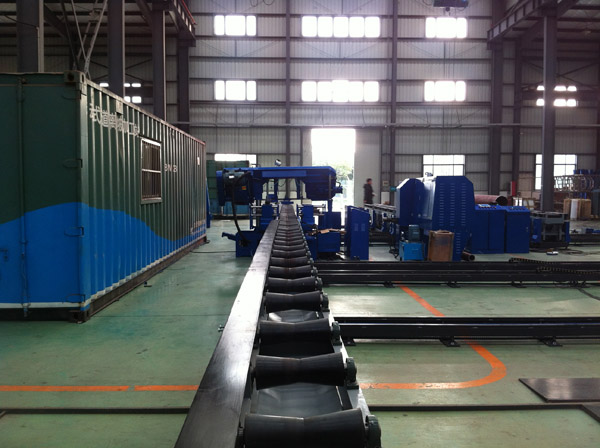

Pipe Conveying System for Cutting Band Saw Machine

Model: PLRCS-16Aa/24Aa/32Aa/40Aa

Features

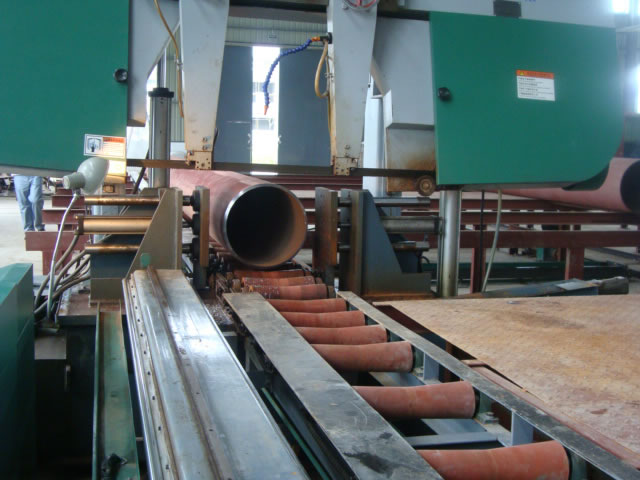

1. The pipe conveying system for cutting band saw machine conveys the pipe automatically or manually when the band saw cuts it and the pipe can be removed from the machine with a turnover mechanism if necessary.
2. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

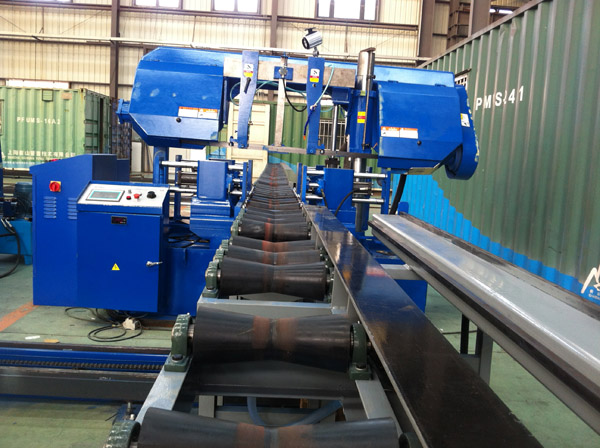

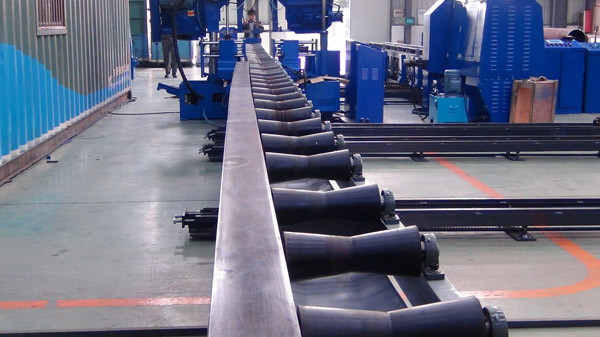

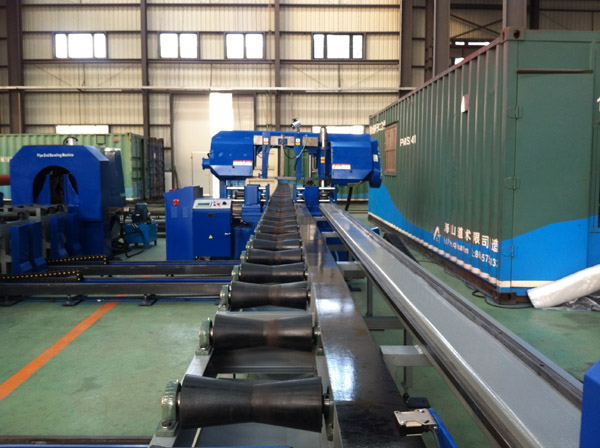

3. Specially designed conveying system for Pipe Cutting Band Saw Machine; V type polyurethane rollers same as the internal conveying of the pipe cutting band saw machine to ensure the alignment of pipes in all directions; VF stepless speed control, manual control on console (wireless remote control for option).

Technical Parameters of the Pipe Conveying System for Cutting Band Saw Machine
Pipe Diameter Applicable: DN400/DN600/DN800/DN1000
Conveying Length: Feed in end: ≥1,000MM; Feed out end: ≥500MM
Line Length: 7.5M at feed in end and 7.5M at feed out end (or depending on customers' requirements)
Line Height: 800MM
Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
Conveying Speed: 2~20M/Min
Speed Adjustment: Manual/VF stepless speed adjustment
Control System: Manual(A1)/PLC control, shared with the pipe cutting length-measuring system (or depending on the situation) (A2)

As a China-based pipe fabrication conveying equipment manufacturer, Qianshan offers pipe conveying system for cutting band saw machine, pipe fabrication production line, high speed pipe end beveling machine, automatic piping welding machine, and much more.
