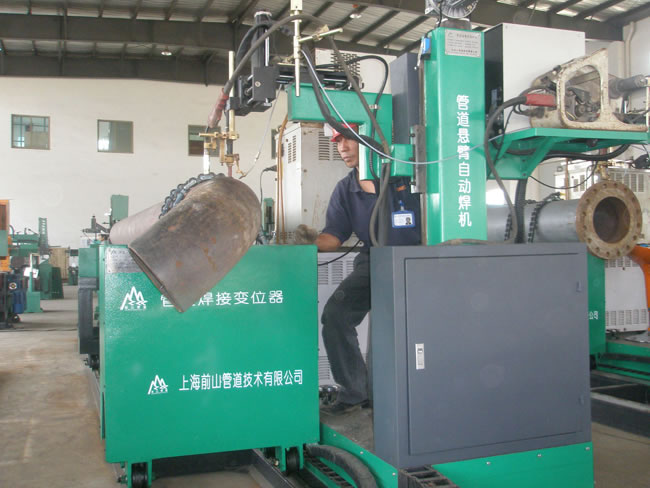

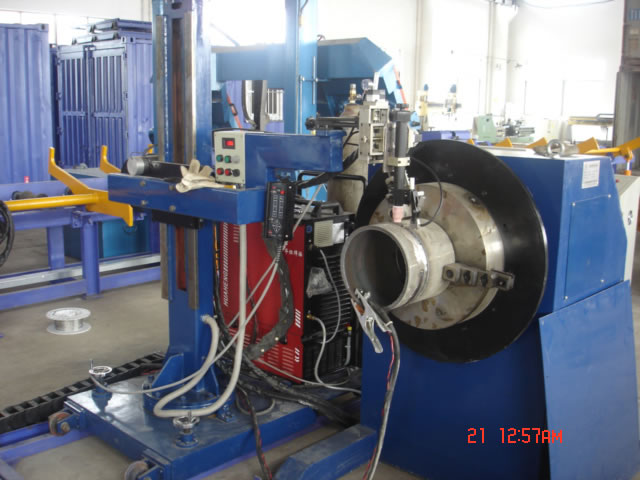

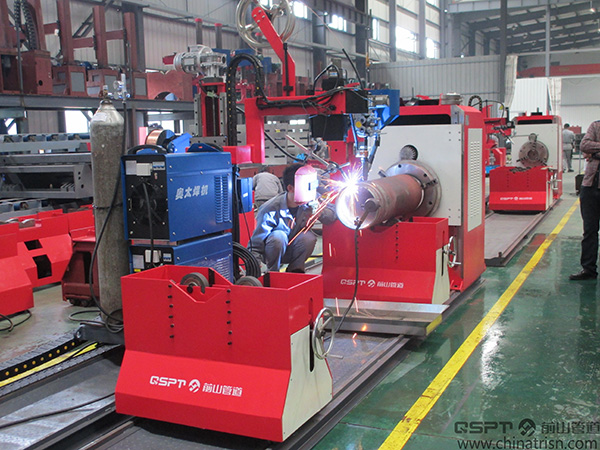

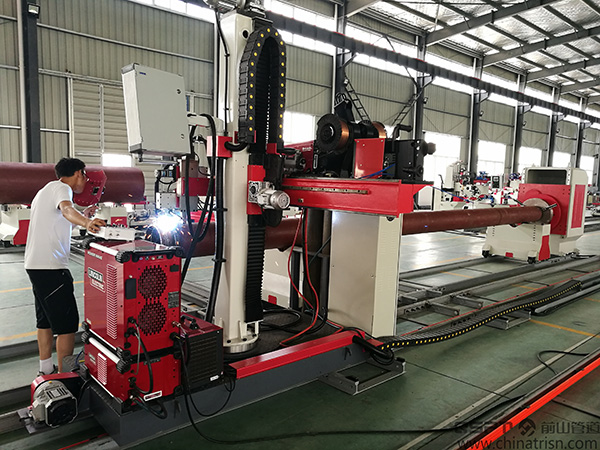

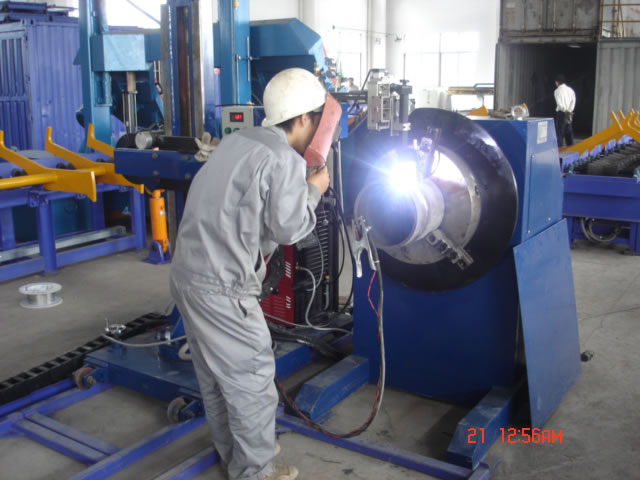

Model: PPAWM-24Cb

Features
1. The automatic piping welding machine offers a low welding capacity (100-200 inch/day).
2. The machine is easy to operate.
3. The automatic piping welding machine offers excellent surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic piping welding offers extremely good driving reliability (mechanical clamping for the position changing of the pipe welding and forceful driving).

Applications
The automatic piping welding machine is used for welding the thin wall pipes or the cover which needs high quality welding.

Technical Parameters of the Automatic Piping Welding Machine (GTAW, Cantilever)
Pipe Diameter Applicable: DN50-600(φ60-610)
Pipe Wall Thickness Applicable: 1-10MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
Driving System: Pipe welding positioner is used, clamped pipe by 2 (or 3, 4) jaw chuck and drive it by positioner directly/pipe welding driving machine is used, clamped pipe and drive it by chain directly
Trolley System: A welding system is fixed on the arm of the trolley which can move along the track according to the welding location while its arm can be adjusted 180 degrees electrically
Bracket System: Separate type of trolley matching for welding machine which may be adjusted along the track according to the length of the pipeline
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Manual cross regulator
Oscillating System: A product of our patented technology, driven by step motor
Control System: A product of our patented technology, PLC control
Welding Procedure: (GTAW/TIG)
Welding Power: OEM products in China (or as per customers' demands)

As a professional automatic piping welding machine manufacturer based in China, Qianshan provides a wide array of products that includes pipe automatic welding machine, pipe fabrication production line, automatic piping welding workstation, high speed pipe cutting and beveling machine, and much more.
