Automatic Portable Piping Welding Machine

Model: PPAWM-16Ca

Features
1. The automatic portable piping welding machine offers excellent welding capacity (200-300 inch/day, which is three times higher than manual welding).
2. The machine is easy to operate.
3. The automatic portable piping welding machine offers excellent surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic portable piping welding offers good driving reliability (driven with friction).
6. The machine is extremely portable.

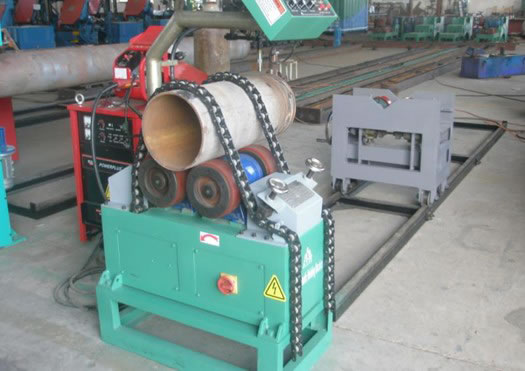

7. Most portable and cost-effective type with main functions of the ordinary automatic welding machine; Suitable for automatic welding in the traditional way of prefabrication; two sets of polyurethane coated wheels (two pcs per set, totally four pcs); driven by motor and reducer; Manual clamping with double chains; driving wheels and exposed driving system. Standard configuration: Lincoln CV500 inverter welding power. Operated with aluminum alloy control box.

Applications
The automatic portable piping welding machine has broad use for pipe welding of various structures of DN≤400 in various industries.

Technical Parameters of the Automatic Portable Piping Welding Machine (FCAW/GMAW)
Pipe Diameter Applicable: DN400
Pipe Wall Thickness Applicable: 3-20MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if necessary)
Driving System: Driven by two line rubber roller and reducer
Clamping System: Clamping with double chain manual screw
Bracket System: Nil (unless customer requires it)
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Manual cross regulator
Oscillating System: A product of our patented technology, step motor driving oscillator
Control System: A product of our patented technology
Welding Procedure: FCAW/GMAW
Welding Power: OEM products in China (or as per customers' demands)

Qianshan is a specialized automatic portable piping welding machine manufacturer based in China. We offer various types of products such as pipe plasma beveling and cutting machine, automatic piping welding machine, high speed pipe end beveling machine, and pipe fabrication production line.
