Automatic Pipe Welding Machine

Home » Products » Pipe Fabrication Welding Equipment » Automatic Pipe Welding Machine (FCAW/GMAW)

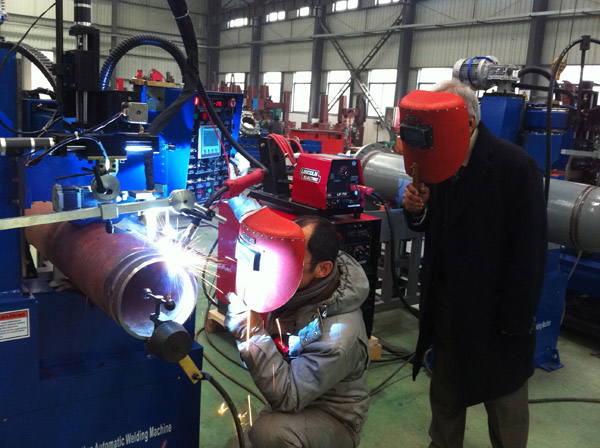

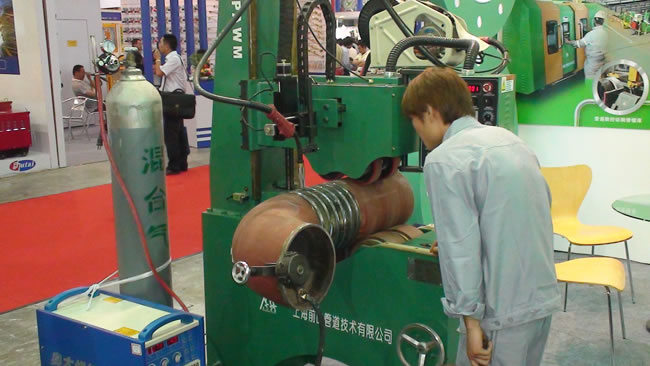

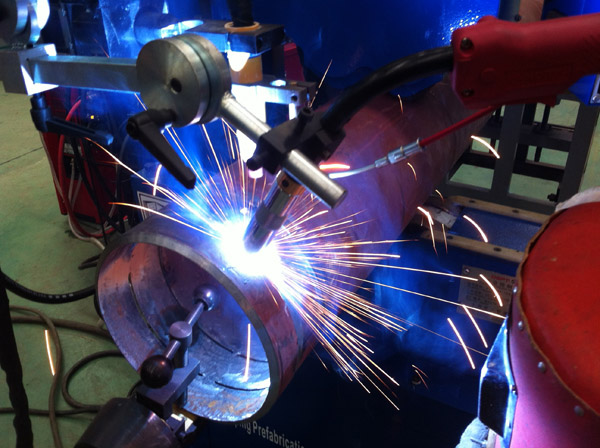

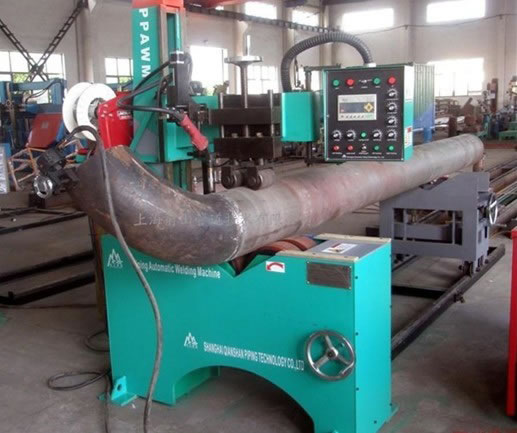

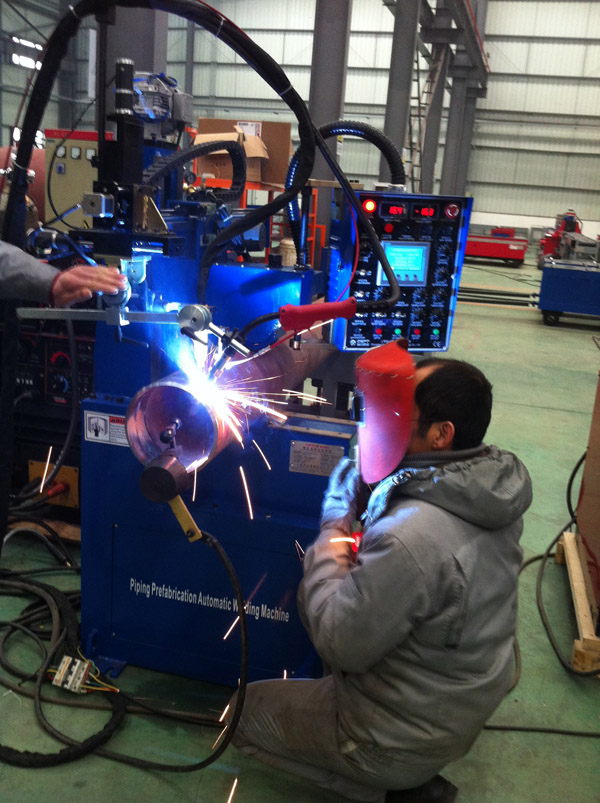

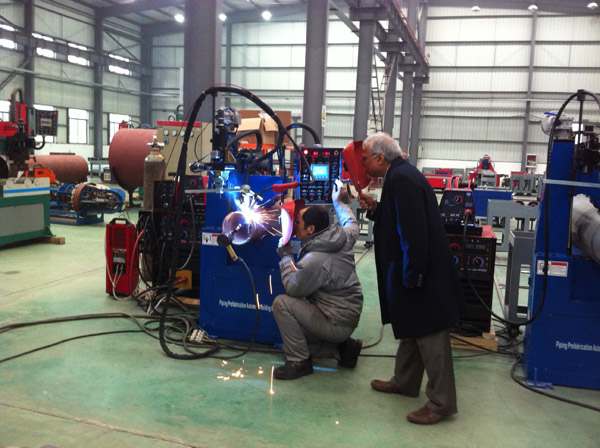

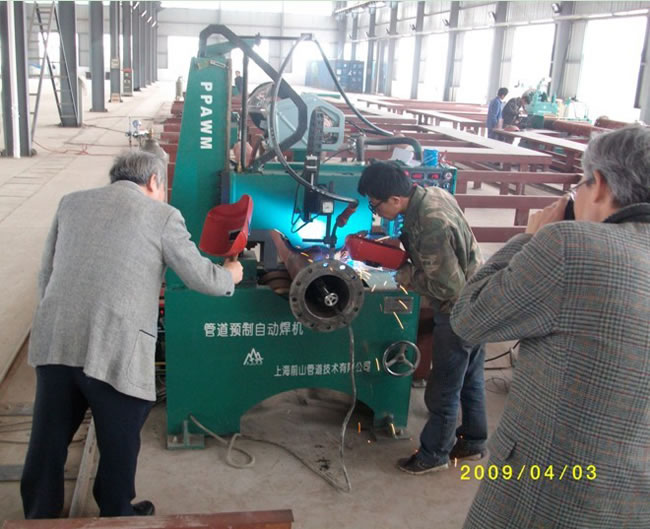

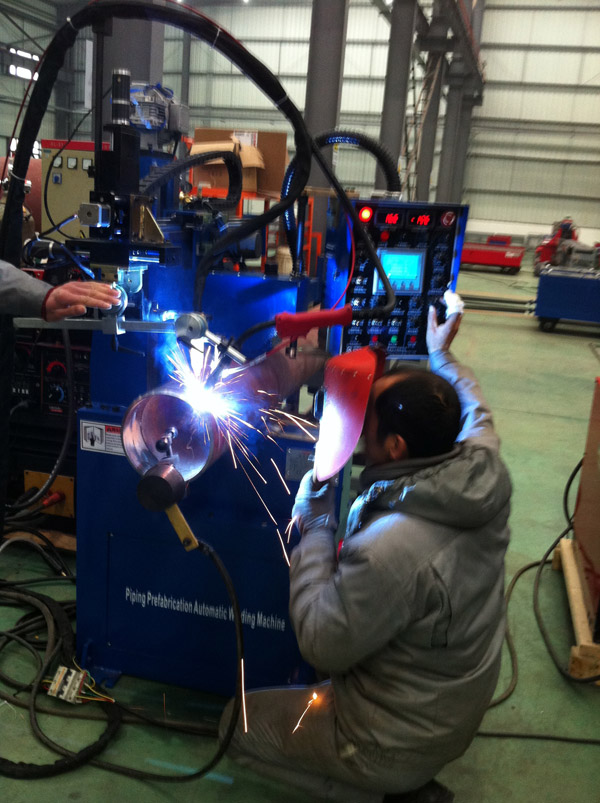

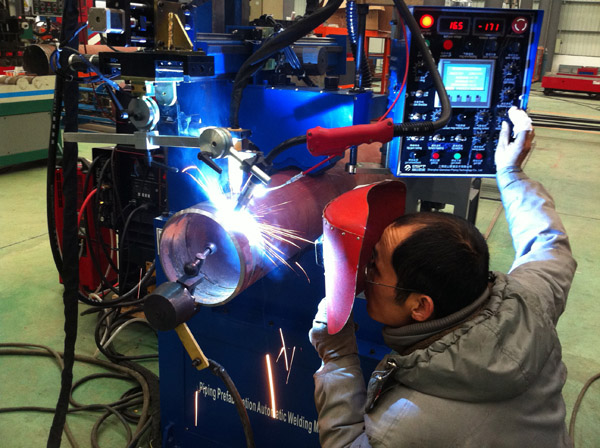

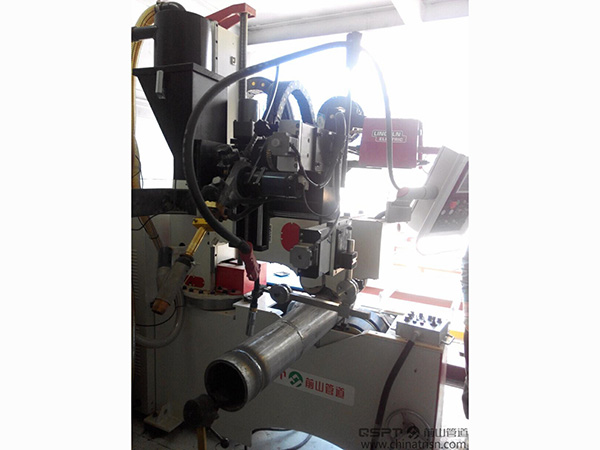

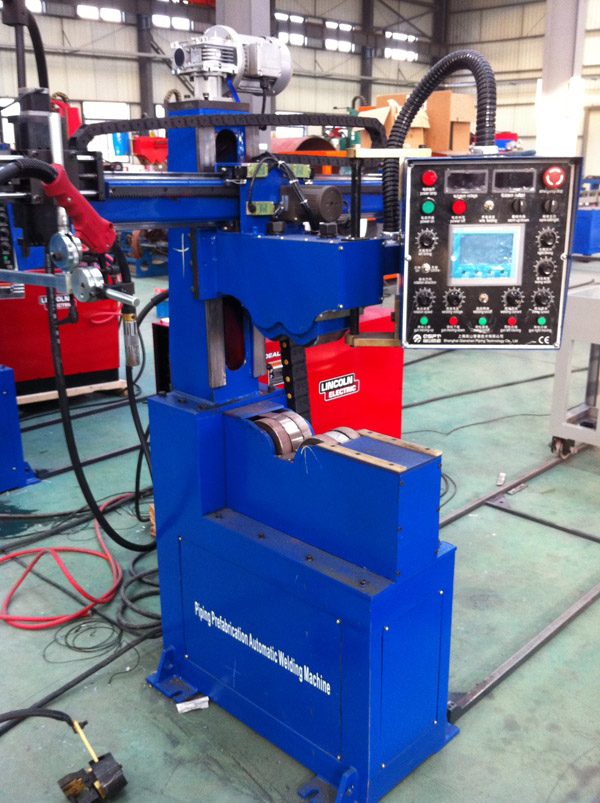

Automatic Pipe Welding Machine (FCAW/GMAW)

Model: PPAWM-16Aa/24Aa/32Aa

Features
1. The automatic pipe welding machine offers excellent welding capacity (250-350 inch/day, which is four times higher than the manual welding).
2. The machine is easy to operate
3. The automatic pipe welding machine offers excellent surface finishing.
4. It offers welding qualification rate: (without re-working for the skilled operator).
5. The automatic pipe welding offers good driving reliability. However, driven by frictional force, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving.

Applications
The automatic pipe welding machine offers extremely broad use for the pipe and cover welding of various structures in various industries.

Technical Parameters of the Automatic Pipe Welding Machine (FCAW/GMAW)
Pipe Diameter Applicable: DN50-400 (φ60-426)/DN50~600(φ60~610)/DN200-800(φ219-813)
Pipe Wall Thickness Applicable: 3~30MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welding Line Applicable: Various butt welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if
necessary)
Driving System: Driven by two line rubber roller and reducer
Clamping System: Clamping arm moves up and down electrically and clamps by screw with telescope boom

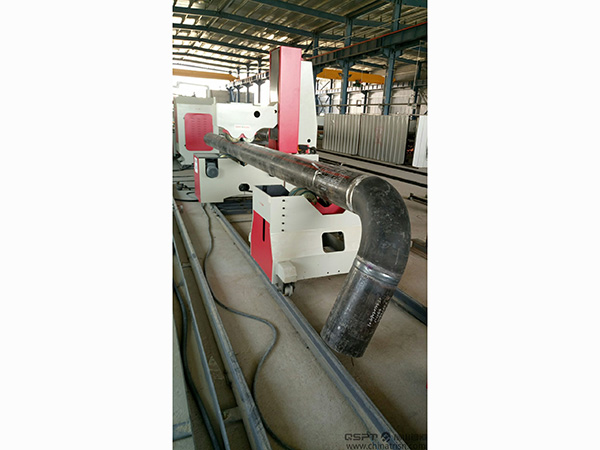

Bracket System: Separate type of trolley matching for welding equipment which may be adjusted along the track according to the length of the pipe
Counterweight System: No counterweight
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Electric cross regulator
Oscillating System: A product of our patented technology
Control System: A product of our patented technology, PLC control
Welding Procedure: FCAW/GMAW (can do root pass, filling, and final welding)
Welding Power: OEM products in China or as per customers' demands

We are a professional automatic pipe welding machine manufacturer based in China. Our company is dedicated to providing our customers with pipe fabrication welding equipment, pipe fabrication beveling equipment, pipe fabrication production line, pipe fabrication cutting equipment, and much more.
